13crmo4-5 Seamless Steel Pipe

Classification :

13CrMo4-5 seamless steel pipe/steel tube is in the Europe standard EN10216-2.
EN10216-2 13CrMo4-5 seamless steel pipe is used extensively in petroleum,
chemical industry, electric power, boiler industry.

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

13crmo4-5 Seamless Steel Pipe

Product introduction

Product name:13CrMo4-5 seamless steel tube 1.7335 seamless steel pipe
Key word:13CrMo4-5 seamless steel tube 1.7335 seamless steel pipe

Standard:API 5L, ASME, ASTM, DIN, GB8162, GB8163, GB5310,etc.
Material:ASTM A106 GRB/ A53 GRB/ API 5L X42,X52,X60,X65,X70GRB/
API 5 CT/ ST42/ST37/ ST52.Q235/Q345/A179etc.
Out diameter:1/8"-20",10mm-720mm
Wall thickness:SCH5~SCH140,STD,XS,XXS,2mm~80mm
Length:1-12m or as customers required
Surface:Black painting, black varnish, transparent oil, epoxy coating, etc.
Technical:Hot rolled,cold extrustion,welded

Usage:
1. Low and middle pressure fluid transportation pipeline
2. Casing Tube
3. Boiler Pipe
4. Petroleum and natural gas industry
5. Chemistry industry
6. Electric industry

Technical data

Chemical composition % of steel 13CrMo4-5 (1.7335):

C	Si	Mn	P	S	Cr	Mo	N	Cu
0.08 - 0.18	max 0.35	0.4 - 1	max 0.025	max 0.01	0.7 - 1.15	0.4 - 0.6	max 0.012	max 0.3

Mechanical properties of steel 13CrMo4-5 (1.7335)

Nominal thickness (mm):	to 60	60 - 100	100 - 150	150 - 250
Rm - Tensile strength (MPa)	450-600	440-590	430-580	420-570

Nominal thickness (mm):	to 16	16 - 60	60 - 100	100 - 150	150 - 250
ReH - Minimum yield strength (MPa)	290-300	290	270	255	245

KV - Impact energy (J) transverse,

+20°
27

KV - Impact energy (J) longitud.,

+20°
40-44

A - Min. elongation at fracture (%)

19-22

Equivalent grades of steel 13CrMo4-5 (1.7335)

USA

Germany

Japan

France

England

Italy

Spain

China

Sweden

Poland

Czechia

Austria

Russia

Inter

DIN,WNr

JIS

AFNOR

UNI

UNE

CSN

ONORM

GOST

ISO

13CrMo4-5

A387Gr.12

13CrMo4-4

SFVAF12

15CD2.05

620

14CrMo3

14CrMo4.5

12CrMo

2216

15HM

15121

13CrMo44KW

12KHM

F32

Gr.P12

15CD4-05

620-440

14CrMo4-5

15KHM

P32

15CD4-5

620Gr.27

14CrMo4.5

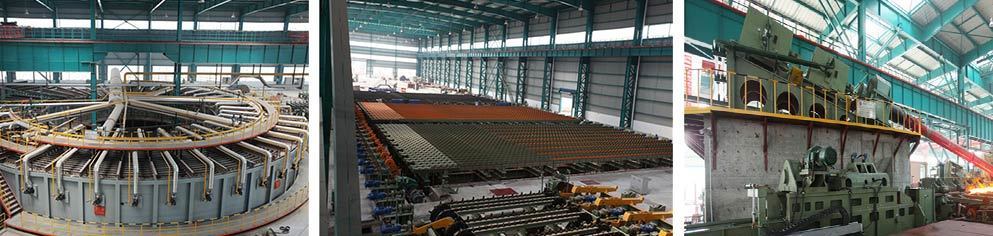

Equipment

Why Choose Us?
1)The products can be made completely according to the customer's requirements, and we have our own factory.
2)High quality product and good price.
3)Good Pre-sale、on sale and after sales service.
4)Short delivery time.
5)Exported all over the world, with rich experience.

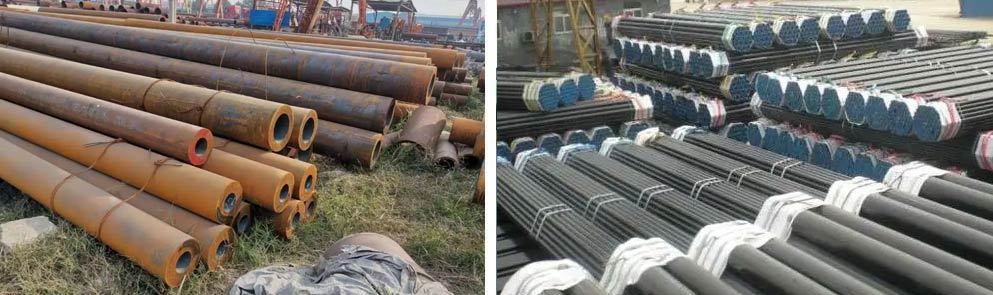

Package

FAQ:
Q：Will you offer samples?
A：Yes. We will provide samples according to your needs and send them out within three days after receiving payment.
Q：Do you have the products in stock?
A：We have the products in stock. Also, we can produce for your order.
Q：Do you offer after-sales services?
A：Certainly. If you have any questions, please feel free to contact us. We shall certainly do it to your satisfaction.

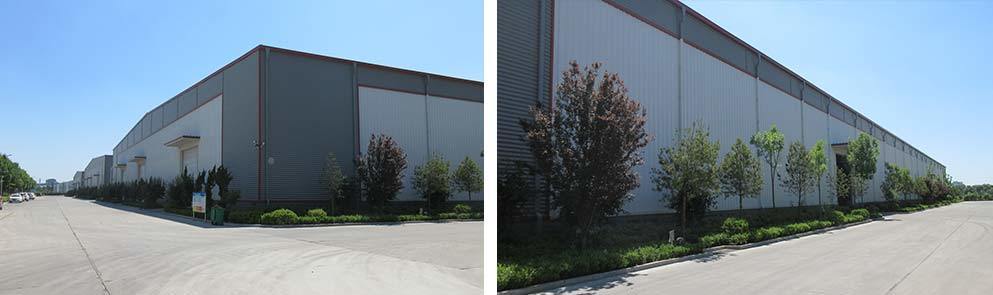

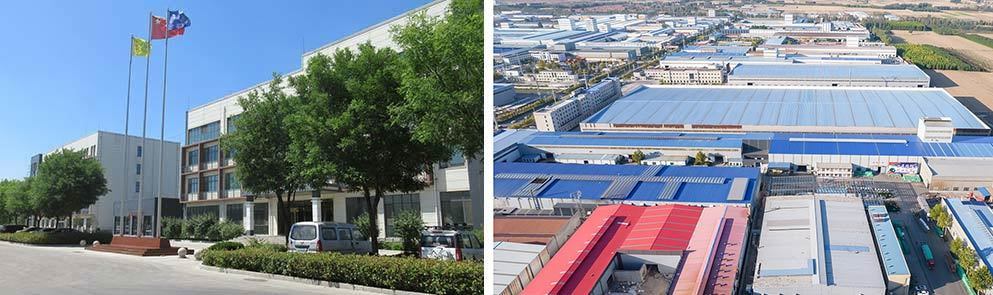

Factory

The factory covers an area of nearly 60000 square meters and has processing equipment such as large shear machines, circular shear machines, straightening machines, annealing furnaces, punching and shearing lines. The company has not only established long-term strategic cooperation relationships with more than 600 domestic large and medium-sized enterprises such as FAW, China National Heavy Duty Truck Group, Sinopec, and Inspur Group. Our products are also exported to over 60 countries and regions in Europe, the Americas, the Middle East, Southeast Asia, and Australia. The products are widely used in industries such as mechanical manufacturing, electrical appliances, electronics, automobiles, insulation, molds, aerospace, military, construction, printing, food, etc

The company implements full process quality control, has a strict quality control system, and closely monitors every step of storage, inspection, and packaging. No negligence is allowed, and unqualified products are not allowed to enter the warehouse. The company has established detailed supplier records and regularly evaluates supply quality. We solemnly promise that if the service is not good, there will be rewards for reporting; If the quality exceeds the standard, the loss will be my package; If the quantity is incorrect, if one is missing, make up ten; If the product is not satisfactory, it will be returned unconditionally.

Seamless Steel Pipe
