Stainless steel 430,430F

Classification :

Stainless steel 430 is a non-hardenable steel containing straight chromium, and belongs to the ferritic group of steels.

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Stainless steel 430

430F

Product introduction

Stainless steel 430 is a non-hardenable steel containing straight chromium, and belongs to the ferritic group of steels. This steel is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications due to its resistance to nitric acid.
430F stainless steel is usually provided in bar form to be used in automatic screw machines. factory Standard AISI ASTM hot/cold roll stainless steel plate

Technical data

Chemical Composition

GradeN		C	Mn	Si	P	S	Cr	Mo	Ni	N
430	min. max.	- 0.12	- 1	- 1	- 0.04	- 0.030	16 18	-	- 0.50	-
430F	min. max.	- 0.12	- 1.25	- 1	- 0.06	0.15 -	16 18	-	-	-

Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
430	483	310	22	85	183
430F	552 typical	379 typical	25 typical	-	262

Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (μm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nΩ.m)
Grade	Density (kg/m3)	Elastic Modulus (GPa)	0-100°C	0-315°C	0-538°C	at 100°C	at 500°C	Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nΩ.m)
430	7750	200	10.4	11.0	11.4	26.1	26.3	460	600
430F	7750	200	10.4	11.0	11.4	26.1	26.3	460	600

Grade Specification Comparison

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
Grade	UNS No	BS	En	No	Name	Swedish SS	Japanese JIS
430	S43000	430S17	60	1.4016	X8Cr17	2320	SUS 430
430F	S43020	-	-	1.4104	X12CrMoS17	2383	SUS 430F

Possible Alternative Grades

Grade	Reasons for choosing 430
430F	Higher machinability than 430 is needed in bar product, and reduced corrosion resistance is acceptable
434	Better pitting resistance is required
304	Slightly higher corrosion resistance is needed, together with greatly improved ability to be welded and cold formed
316	Much better corrosion resistance is needed, coupled with greatly improved ability to be welded and cold formed
3CR12	Lower corrosion resistance is acceptable in a cost-critical application

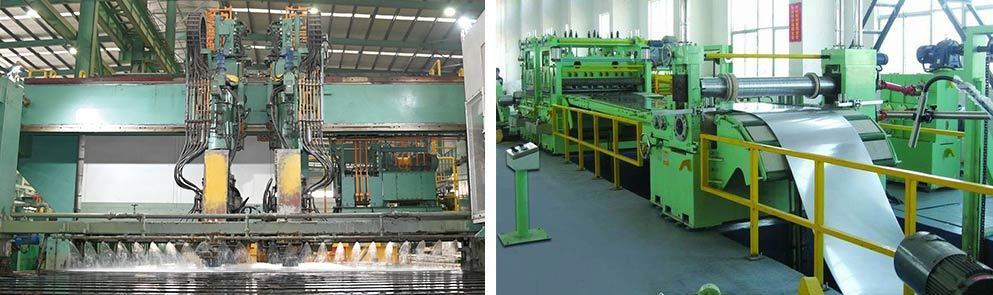

Equipment

Why Choose Us?
1)The products can be made completely according to the customer's requirements, and we have our own factory.
2)High quality product and good price.
3)Good Pre-sale、on sale and after sales service.
4)Short delivery time.
5)Exported all over the world, with rich experience.

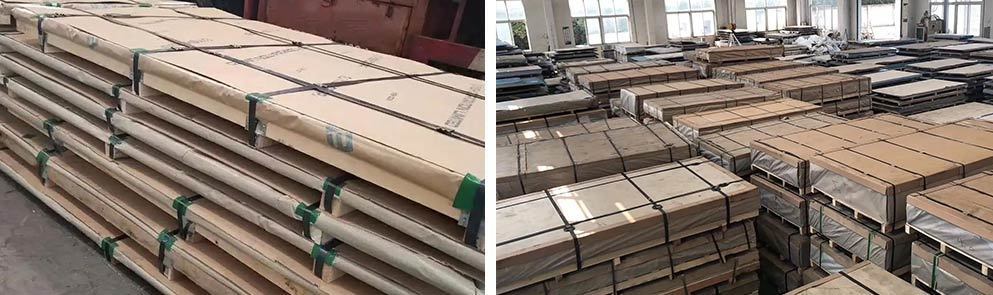

Package

FAQ:
Q：Will you offer samples?
A：Yes. We will provide samples according to your needs and send them out within three days after receiving payment.
Q：Do you have the products in stock?
A：We have the products in stock. Also, we can produce for your order.
Q：Do you offer after-sales services?
A：Certainly. If you have any questions, please feel free to contact us. We shall certainly do it to your satisfaction.

Factory

The factory covers an area of nearly 60000 square meters and has processing equipment such as large shear machines, circular shear machines, straightening machines, annealing furnaces, punching and shearing lines. The company has not only established long-term strategic cooperation relationships with more than 600 domestic large and medium-sized enterprises such as FAW, China National Heavy Duty Truck Group, Sinopec, and Inspur Group. Our products are also exported to over 60 countries and regions in Europe, the Americas, the Middle East, Southeast Asia, and Australia. The products are widely used in industries such as mechanical manufacturing, electrical appliances, electronics, automobiles, insulation, molds, aerospace, military, construction, printing, food, etc

The company implements full process quality control, has a strict quality control system, and closely monitors every step of storage, inspection, and packaging. No negligence is allowed, and unqualified products are not allowed to enter the warehouse. The company has established detailed supplier records and regularly evaluates supply quality. We solemnly promise that if the service is not good, there will be rewards for reporting; If the quality exceeds the standard, the loss will be my package; If the quantity is incorrect, if one is missing, make up ten; If the product is not satisfactory, it will be returned unconditionally.

Stainless Steel Plate
