CCS EH40 Marine Steel Plate

Classification :

CCS is a founding member of the International Association
of Classification Societies(IACS),formed in 1968. The CCS
fleet is recognized by approximately 116 international flag
authorities.
CCS integrated services for the complate shipping
cycle including design, building, shipyard management, inspection
and testing of materials/components and regular inspections to
maintain the class are used by freight, ferries, ro-ro, passenger ships,
yachts, cruise ships, navy, LGN and other specialist carrier vessels.

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Brief introduction of marine steel plate

Marine steel plate refers to structural steel used in ship building. It is considered a marine grade and must be able to resist corrosive effects that are common in a water environment. To achieve this, special alloying elements are added to these grades in order to defend agaist corrosion.While most carbon steel is not suited for marine environments, there are several marine grade carbon steels that have been approved by the different societies for shipbuilding applications.

Structural steel for ship hulls is divided into strength classes according to its minimum yield strength: general strength structural steel and high strength structural steel. Maine steel plate refers to hot rolled steel plate produced in accordance with the requirements of the classication society for the construction of ship hull structures.

There are 9 main classification societies in worldwide.
A.B.S    American Bureau of Shipping
B.V.     Bureau Veritas
C.C.S.   China Classification Society
D.N.V   Det Norske Veritas
G.L.    Germanischer Lloyd
K.R.    Korean Register of Shipping
L.R.    Lloyd’s Register of Shipping
N.K.    Nippon Kaiji Kyokai
R.I.N.A Registro Italiano Navale

CCSAH40 steel is a kind of hot rolled high tensile strength steel. Higher-strength CCS shipbuilding steel comes in 12 grades of 3 strengths, AH40 is one of the grades. The CCS AH40 grade steel plates have yield strength of 56,500 psi (390 MPa), and ultimate tensile strength of 74,000 - 94,500 psi (510-650 MPa).

CCS is a founding member of the International Association of Classification Societies(IACS),formed in 1968. The CCS fleet is recognized by approximately 116 international flag authorities. CCS integrated services for the complate shipping cycle including design, building, shipyard management, inspection and testing of materials/components and regular inspections to maintain the class are used by freight, ferries, ro-ro, passenger ships, yachts, cruise ships, navy, LGN and other specialist carrier vessels.

Grade AH40 steel is the impact force subjected to 0 ° C
Grade DH40 steel impact force at -20 ° C
Grade EH40 steel impact force at -40 ° C
Grade FH40 steel impact force at -60 ° C

Shot blasting service
Shot blasting is a method used to clean or polish steel when enhanced surface finishes are required. Shot blasting is used in almost every industry we serve. Especially in shipbuilding, rail,structural fabrication and more.

Specifications range
Thickness:2.5-120mm
Width:1000-3000mm
Length: As request

Chemical composition and mechanical properties

Chemical Composition

Steel grade	C	Si	Mn	P	S	Als
Grade AH40	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade DH40	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade EH40	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade FH40	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015

Processing for Different Grades
Grade D, E (DH32, DH36, EH 32, EH 36)
Grade D and E series (inlcuding AH32/36, DH32, DH36, EH32, EH36) shipbuilding steel plates require good low temperature toughness and good welding performance. The production high-strength shipbuilding steel plate needs to be normalized by means of controlled rolling and controlled cooling or heat treatment processes with more complete equipment. At the same time, the internal steel purity of the supplied billets is required to be high, especially the content of S, P, N, 0 and H in the steel should be strictly controlled.

Alloy Elements Added to Improve Toughness
In order to ensure the performance of high-strength ship plates, micro-alloying technology is adopted. By adding Nb, V, Ti and other alloying elements to the steel, combined with the controlled rolling process, the grain is refined and the toughness is improved.
Direction of Development for Shipbuilding Plate
High strength, high specification, with the ship's large-scale and safety, and changes in coating specifications, the demand for ordinary A-class panels is gradually reduced, and the demand for high-strength panels is increasing, which is concentrated in large ships of 5m wide. Plate, 200-300mm thickness special thick ship board.

Mechanical Properties

Steel grade	Yield point/MPa	Tensile point /MPa	Elongation/%	Temperature/° C	V-type impact test
					Akv/J
					≤50MM	50-70MM	70-100MM
Grade AH40	≥390	510-660	≥20	0	41/21	-	-
Grade DH40	≥390	510-660	≥20	-20	41/21	-	-
Grade EH40	≥390	510-660	≥20	-40	41/21	-	-
Grade FH40	≥390	510-660	≥20	-60	41/21	-	-

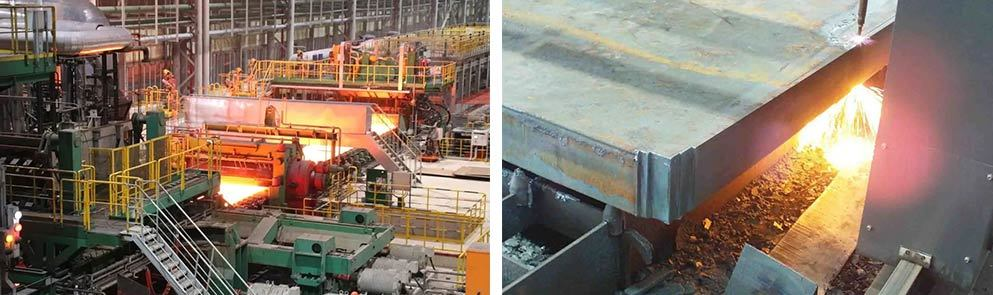

Equipment

Why Choose Us?
1)The products can be made completely according to the customer's requirements, and we have our own factory.
2)High quality product and good price.
3)Good Pre-sale、on sale and after sales service.
4)Short delivery time.
5)Exported all over the world, with rich experience.

Package

FAQ:
Q：Will you offer samples?
A：Yes. We will provide samples according to your needs and send them out within three days after receiving payment.
Q：Do you have the products in stock?
A：We have the products in stock. Also, we can produce for your order.
Q：Do you offer after-sales services?
A：Certainly. If you have any questions, please feel free to contact us. We shall certainly do it to your satisfaction.

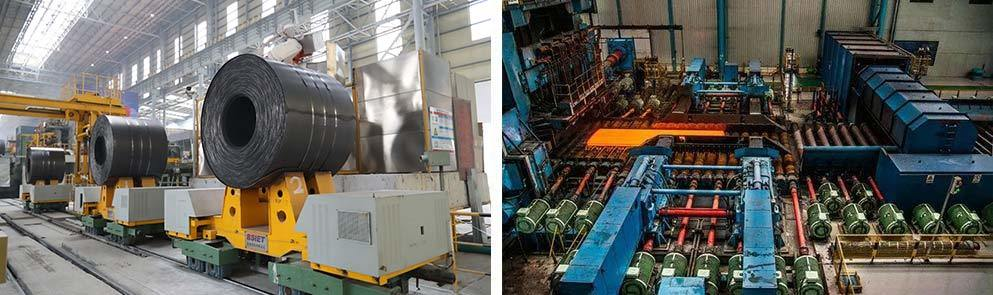

Factory

The factory covers an area of nearly 60000 square meters and has processing equipment such as large shear machines, circular shear machines, straightening machines, annealing furnaces, punching and shearing lines. The company has not only established long-term strategic cooperation relationships with more than 600 domestic large and medium-sized enterprises such as FAW, China National Heavy Duty Truck Group, Sinopec, and Inspur Group. Our products are also exported to over 60 countries and regions in Europe, the Americas, the Middle East, Southeast Asia, and Australia. The products are widely used in industries such as mechanical manufacturing, electrical appliances, electronics, automobiles, insulation, molds, aerospace, military, construction, printing, food, etc

The company implements full process quality control, has a strict quality control system, and closely monitors every step of storage, inspection, and packaging. No negligence is allowed, and unqualified products are not allowed to enter the warehouse. The company has established detailed supplier records and regularly evaluates supply quality. We solemnly promise that if the service is not good, there will be rewards for reporting; If the quality exceeds the standard, the loss will be my package; If the quantity is incorrect, if one is missing, make up ten; If the product is not satisfactory, it will be returned unconditionally.

Shipbuilding Steel Plate
